FAQ: Installation, Use & Maintenance

Installation

The Gjosa Douchette is easy to install. If you have an Aquastop system here is the procedure to follow:

i – The diameter of the Aquastop’s claw should be between 20 and 24 mm. Its depth should be between 6 and 17 mm.

1 – Remove the current showerhead using a 13 mm wrench or a pair of pliers.

2 – Place the adapter on the Aquastop.

3 – Screw the hand shower onto the hose.

4 – Slide the hand shower onto the adapter.

The Gjosa Douchette is easy to install. If you have a standard bin with a hose guide insert (no Aquastop system), here is the procedure to follow:

i – On the bassin, the diameter of the hole should be between 30 and 40 mm. Its depth should be between 3 and 20 mm.

1 – Remove the current hand shower using a 13 mm wrench or a pair of pliers.

2 – Remove the hose guide from the wash basin using a pair of pliers.

3 – Place the hose through the easy-dock support and the seal. Screw the hand shower onto the hose using a 13 mm wrench or a pair of pliers.

4 – Mount the easy-dock support on the basin. It is also possible to screw it by hand.

The Gjosa Douchette is easy to install. For a simplified version of the installation, if for example you cannot unscrew your hose guide, here is the procedure to follow:

1 – Remove the current hand shower using a 13 mm wrench or a pair of pliers.

2 – Screw the hand shower onto the hose using a 13 mm wrench or a pair of pliers.

3 – Place the hand shower in the hose guide.

If your current installation has a 1/2″ connector, you can easily connect the “Douchette” to the hose:

You can unscrew the hose guide using a pair of pliers.

Yes, thanks to its connector, the Gjosa Douchette can be adapted to all types of shampoo bowls.

A – The Gjosa Douchette

B – One Easydock support

C – Seal

D – Easydock support nut

E – Aquastop adapter

F –Aquastop adapter nut

The Gjosa Douchette is easy to install. If you have an Aquastop system here is the procedure to follow:



The diameter of the Aquastop’s claw should be between 20 and 24 mm. Its depth should be between 6 and 17 mm.

Remove the current showerhead using a 13 mm wrench or a pair of pliers.

Place the adapter on the Aquastop.

Screw the hand shower onto the hose.

Slide the hand shower onto the adapter.

The Gjosa Douchette is easy to install. If you have a standard bin with a hose guide insert (no Aquastop system), here is the procedure to follow:



On the bassin, the diameter of the hole should be between 30 and 40 mm. Its depth should be between 3 and 20 mm.

Remove the current hand shower using a 13 mm wrench or a pair of pliers.

Remove the hose guide from the wash basin using a pair of pliers.

Place the hose through the easy-dock support and the seal. Screw the hand shower onto the hose using a 13 mm wrench or a pair of pliers.

Mount the easy-dock support on the basin. It is also possible to screw it by hand.

The Gjosa Douchette is easy to install. For a simplified version of the installation, if for example you cannot unscrew your hose guide, here is the procedure to follow:



Remove the current hand shower using a 13 mm wrench or a pair of pliers.

Screw the hand shower onto the hose using a 13 mm wrench or a pair of pliers.

Place the hand shower in the hose guide.

You can unscrew the hose guide using a pair of pliers.

Yes, thanks to its connector, the Gjosa Douchette can be adapted to all types of shampoo bowls.

A – The Gjosa Douchette

B – One Easydock support

C – Seal

D – Easydock support nut

E – Aquastop adapter

F – Aquastop adapter nut

Use

The Gjosa Douchette is equipped with a revolutionary technology that saves up to 65% of water. The drops are much smaller than with a standard showerhead and are propelled at high speed. That is why it’s important to use the shower relatively close to the scalp to avoid splashing.



The spray is fast and can be adjusted by adjusting your mixer and manipulating the opening differently than a standard shower. You can also adjust the distance of the hand shower to the scalp. The closer you are to your customer’s scalp, the easier it will be to use the hand.

1 – The intuitive use of the Gjosa Douchette is an extension of the hand, ensuring comfort and precision. Its ergonomic design makes it easy to handle.

2 – Keep the jet perpendicular and a short distance (1 – 3 cm) from the scalp for optimal efficiency. Handling can be done with a touching tip.

3 – Thanks to its 360° mobility, the hand shower can cover the entire scalp, up to the nape of the neck.

4 – Protect the face contour from splashes with your hand.

You may need to tighten your connection between the hose and the Gjosa Douchette with a pair of pliers or a 13 mm wrench. If the leak is still present, a new seal should be installed.

A thermostatic valve can be installed in order to stabilize the temperature. In this case, it is preferable to use the services of a plumber.

Installation with Aquastop

If the « Douchette » is installed with an Aquastop, there exists an adapted thermostatic valve by Gamox. (Reference: GA905.20 – GAMOXTERM evolution thermostatic mixer)

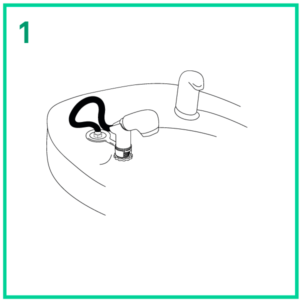

1 – Standard Aquastop Installation

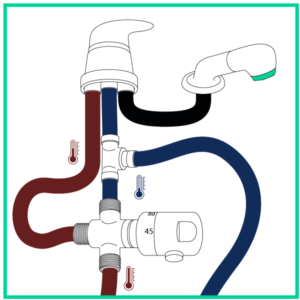

2 – Aquastop Installation with a thermostatic valve

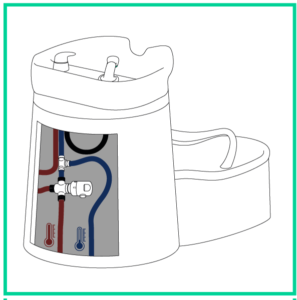

Installation with Easydock

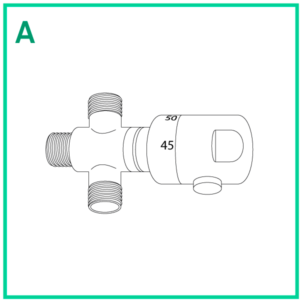

If the « Douchette » is installed with an Easydock adapter, the thermostatic valve (A) gets connected under the backbar.

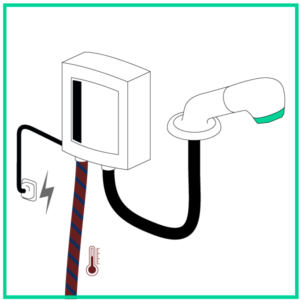

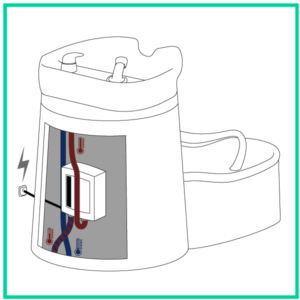

A booster can be installed in order to settle racking time issues. In this case, it is preferable to use the services of a plumber. The booster can be connected directly to the water supply. It must be plugged into mains.

The Gjosa Douchette is equipped with a revolutionary technology that saves up to 65% of water. The drops are much smaller than with a standard showerhead and are propelled at high speed. That’s why it’s important to use the shower relatively close to the scalp to avoid splashing.

The spray is fast and can be adjusted by adjusting your mixer and manipulating the opening differently than a standard shower. You can also adjust the distance of the hand shower to the scalp. The closer you are to your customer’s scalp, the easier it will be to use the hand.



The intuitive use of the Gjosa Douchette is an extension of the hand, ensuring comfort and precision. Its ergonomic design makes it easy to handle.

Keep the jet perpendicular and a short distance (1 – 3 cm) from the scalp for optimal efficiency. Handling can be done with a touching tip.

Thanks to its 360° mobility, the hand shower can cover the entire scalp, up to the nape of the neck.

Protect the face contour from splashes with your hand.

You may need to tighten your connection between the hose and the Gjosa Douchette with a pair of pliers or a 13 mm wrench. If the leak is still present, a new seal should be installed.

A thermostatic valve can be installed in order to stabilize the temperature. In this case, it is preferable to use the services of a plumber. Installation with Aquastop If the « Douchette » is installed with an Aquastop, there exists an adapted thermostatic valve by Gamox. (Reference: GA905.20 – GAMOXTERM evolution thermostatic mixer) 1 – Standard Aquastop Installation 2 – Aquastop Installation with a thermostatic valve Installation with Easydock If the « Douchette » is installed with an Easydock adapter, the thermostatic valve (A) gets connected under the backbar.
A booster can be installed in order to settle racking time issues. In this case, it is preferable to use the services of a plumber. The booster can be connected directly to the water supply. It must be plugged into mains.

Maintenance

Descaling

1 – Remove the Gjosa Douchette from the easydock support.

2 – Immerge the Gjosa Douchette in white vinegar for 2 hours. The green part must face upwards. (Do not add anything to vinegar)

3 – Remove the Gjosa Douchette from the white vinegar and put it back on its base. It is ready to use!



Cleaning the filter

! – While handling your Douchette, be careful to keep the parts (A, B & C) inside. If part B is mounted the right way round, three holes are visible. The filter (C) can be flat or curved, depending on the model of the hand shower.

1 – Remove the Gjosa Douchette from the easydock support and unscrew the hose. If the operation is difficult, use a 13 mm wrench or a pair of pliers and a cloth.

2 – Remove the filter (C).

3 – Clean the filter on both sides with a brush.

4 – Rinse it and remove any residue.

5 – Replace the filter in the Gjosa Douchette.

6 – Screw the Gjosa Douchette back onto the flexible hose and put it back on its base. It is ready to use!

Descaling

Remove the Gjosa Douchette from the easydock support.


Immerge the Gjosa Douchette in white vinegar for 2 hours. The green part must face upwards. (Do not add anything to vinegar)

Remove the Gjosa Douchette from the white vinegar and put it back on its base. It is ready to use!



Cleaning the filter


While handling your Douchette, be careful to keep the parts (A, B & C) inside. If part B is mounted the right way round, three holes are visible. The filter (C) can be flat or curved, depending on the model of the hand shower.


Remove the Gjosa Douchette from the easydock support and unscrew the hose. If the operation is difficult, use a 13 mm wrench or a pair of pliers and a cloth.


Remove the filter (C).


Clean the filter on both sides with a brush.


Rinse it and remove any residue.


Replace the filter in the Gjosa Douchette.


Screw the Gjosa Douchette back onto the flexible hose and put it back on its base. It is ready to use!
